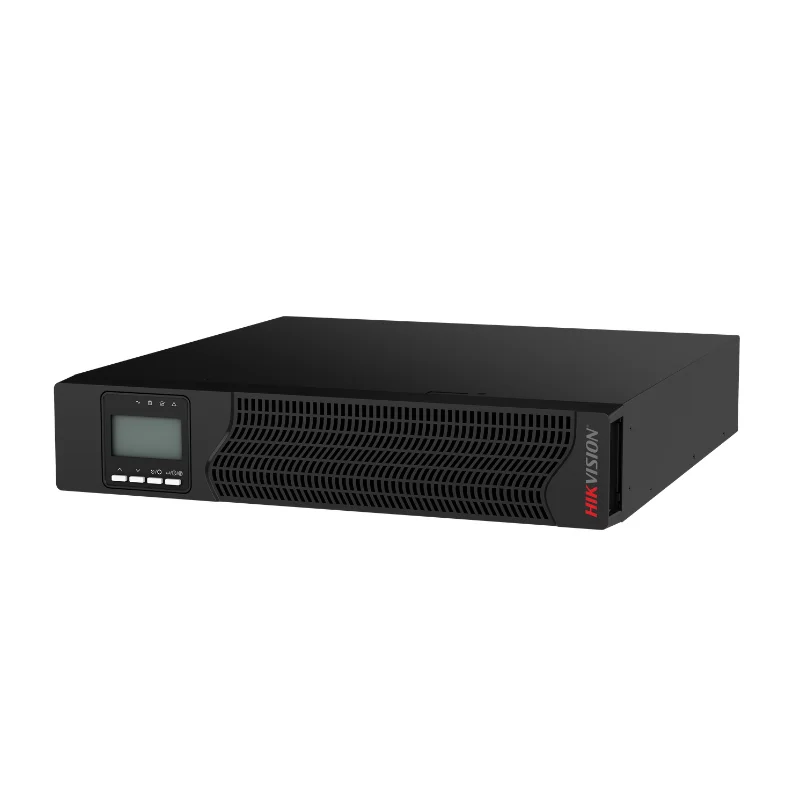

Hikvision DS-UPS10K-R/TJL – Description
Online UPS 10000VA/10000W
Powerful 10kVA/10kW Capacity:
The Hikvision DS-UPS10K-R/TJL is a high-capacity online UPS designed to provide reliable backup power for critical IT, networking, communication, and industrial equipment. With a rated capacity of 10000VA / 10000W and an output power factor of 1.0, it can efficiently support demanding loads while maintaining stable power delivery.
Online Double-Conversion Protection:
This Hikvision UPS uses online double-conversion technology, continuously regulating incoming power before supplying it to connected equipment. This design helps protect sensitive devices against blackouts, voltage fluctuations, surges, electrical noise, and other common power-quality problems.
Wide Input Voltage Range:
The DS-UPS10K-R/TJL supports a nominal input voltage of 208/220/230/240VAC and operates across a wide 110–300VAC input range, depending on the connected load. Its 40–70Hz input frequency range also supports automatic 50/60Hz sensing, making it suitable for different electrical environments.
Stable Pure Sine Wave Output:
For sensitive electronic equipment, the UPS provides a pure sine wave output at 208/220/230/240VAC. It offers an output power factor of 1 and a 3:1 crest factor. Harmonic distortion is kept to ≤1% for linear loads and ≤3% for non-linear loads, helping maintain clean and stable power.
Zero Transfer Time:
The DS-UPS10K-R/TJL provides 0ms transfer time from AC mode to battery mode and 0ms from inverter to bypass. This is particularly important for servers, storage systems, networking equipment, security systems, and other critical devices that cannot tolerate even a brief power interruption.
External Battery Configuration:
This UPS is supplied without a built-in battery, allowing the backup system to be configured according to the required runtime. It supports VRLA batteries with a selectable 192VDC or 240VDC battery system and a maximum charging current of 15A. External battery packs can be used to extend runtime for longer backup requirements.
LCD Monitoring and Alarms:
An integrated LCD display provides useful real-time information, including input and output voltage, frequency, load percentage, battery voltage, internal temperature, and remaining backup time. The UPS also provides alarms for battery mode, low battery voltage, overload, and system faults.
Efficient and Reliable Operation:
The Hikvision DS-UPS10K-R/TJL reaches up to 95.5% efficiency in AC mode and up to 93.5% in battery mode. It is designed for continuous operation between 0°C and 40°C, with a humidity range of 0–95% non-condensing.
Ideal for Critical Applications:
With its high power capacity, pure sine wave output, wide voltage range, zero transfer time, and expandable external battery design, this 10kW online UPS is suitable for data centers, server rooms, enterprise networks, telecommunications, surveillance infrastructure, and industrial equipment requiring dependable power protection.
