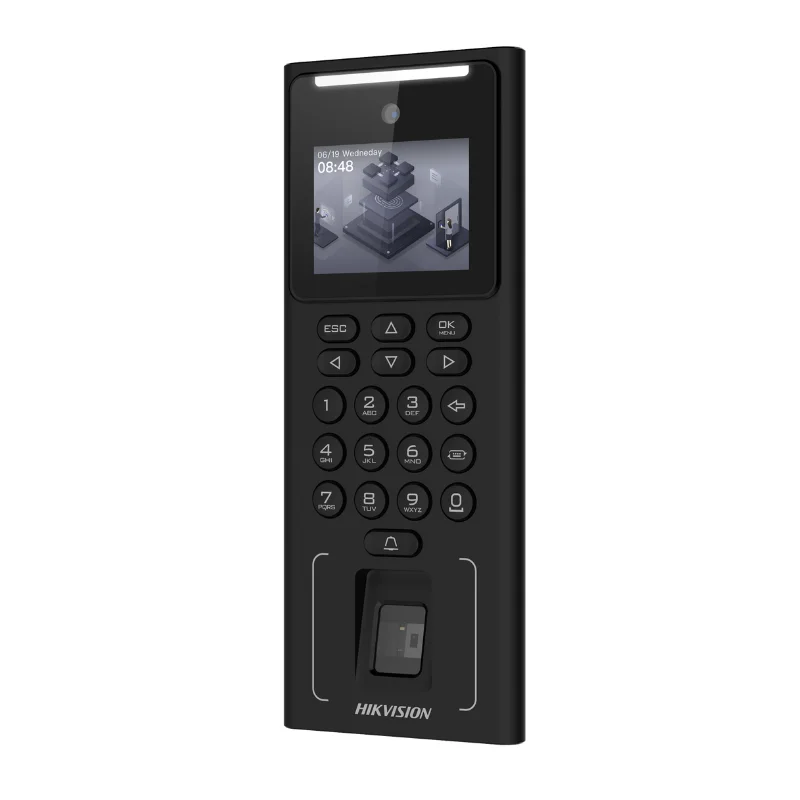

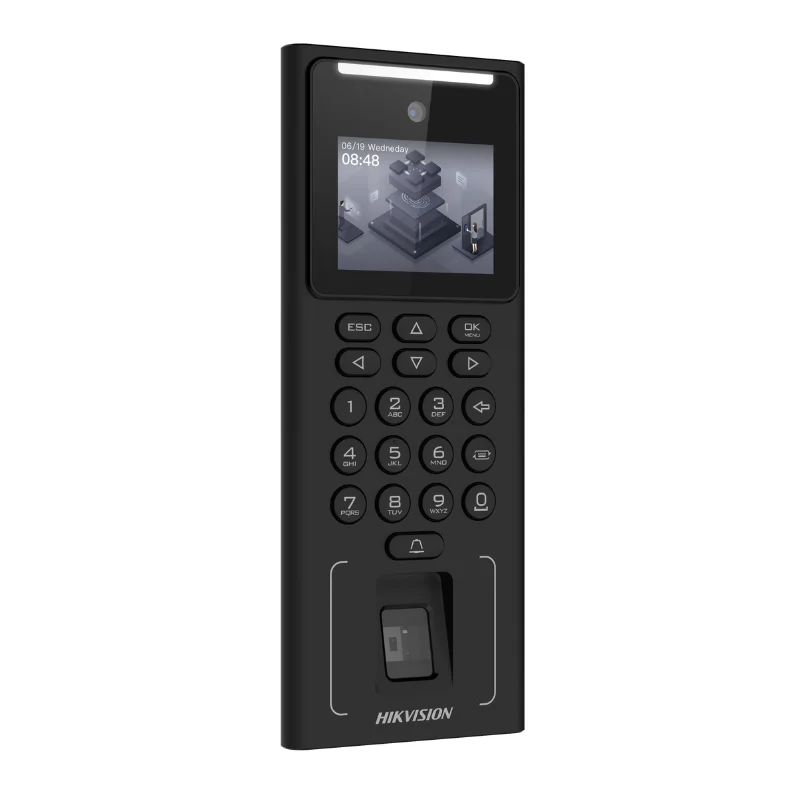

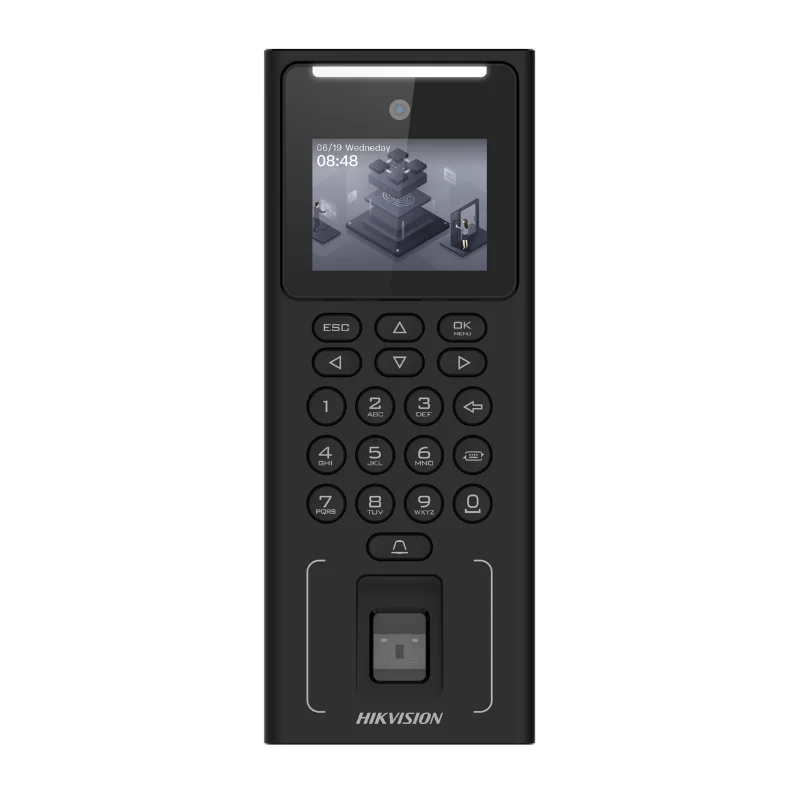

Hikvision DS-K1T321EFWX – Description
Value Series Face Access Control
Advanced Face Access Terminal:
The Hikvision DS-K1T321EFWX Value Series Face Access Terminal provides a practical and secure solution for modern access control. It combines face recognition, fingerprint authentication, EM card access, and PIN verification in one compact device, making it suitable for offices, businesses, retail stores, and other controlled-entry environments.
Fast Face Recognition:
Equipped with a 2 MP lens and face recognition technology, the DS-K1T321EFWX delivers fast user identification with a recognition duration of less than 0.2 seconds per user. Its face anti-spoofing function adds an additional layer of security against unauthorized access attempts.
Multiple Authentication Methods:
The Hikvision access control supports several authentication options, including face, fingerprint, EM card, and PIN. This flexibility allows administrators to select the most convenient access method for different users while maintaining reliable security and controlled entry.
Large User Capacity:
The Hikvision DS-K1T321EFWX supports up to 500 faces, 3,000 fingerprints, and 3,000 EM cards, along with storage for up to 150,000 access events. This capacity makes the terminal suitable for small and medium-sized organizations requiring centralized user and event management.
2.4-Inch LCD Display:
A 2.4-inch LCD screen provides a clear interface for user interaction and device configuration. The built-in keypad further simplifies PIN authentication and everyday operation, helping users access the system quickly and conveniently.
Wired and Wi-Fi Connectivity:
The Hikvision access control DS-K1T321EFWX supports both wired Ethernet and 2.4 GHz Wi-Fi connectivity. Its RJ-45 network interface provides 10/100 Mbps self-adaptive communication, while Wi-Fi supports 802.11b/g/n and AP mode for flexible installation and network access.
Secure Door Control Interfaces:
For integrated access control installations, the terminal provides connections for lock control, exit button, door contact, tamper detection, and RS-485. It can also be wired with a secure door control unit or compatible card reader through its Hikvision RS-485 interface.
Flexible System Integration:
The device supports ISAPI and ISUP 5.0 protocols, helping integrate the access terminal with compatible management and security systems. Configuration can be performed through both a PC web client and mobile web client, providing convenient administration.
Reliable Indoor Operation:
Designed for dependable everyday use, the terminal operates within a temperature range of -10°C to 55°C and supports 0–90% non-condensing humidity. It requires 12 VDC power and has a maximum power consumption of 6 W.
